The top-of-the-line model lets you down on first cut. You’ve bought into their name. They’re supposed to be reliable.
But as soon as you start cutting with a DeWalt DWS780 blade, it’ll wobble on the rails. That’s not just irritating; that’s a material-killer and potential safety risk. What did you pay for?
Precision. And what do you get? Inconsistency.
Most of the time problem with sliding action can be resolved. Nine times out of ten saw just was not built right and there is no reason it cannot be made to function properly. Sometimes they loosens up in shipping but sometimes factory got away from their tolerance stack up on assembly.
Most people think they recieved a bad one. But the truth is they need to spend about half an hour playing with it. Learning how rail system works turns a decision to throw it away into a decision to fix it.
How To Fix DeWalt DWS780 Slide Issues
Diagnosing Sliding Table Wobble
Examine carriage bolts attaching sliding table to main body. This is where your saw loads when cutting. When the bolts gets loose, entire assembly flexes.
That’s what you’ll notice right away. With hex key, tighten them, but don’t overtighten. The threads can strips and then you have more than a bolt tightening problem, you’re replacing a part.
Tightening Carriage Bolts
Every time you move your saw, check these bolts. Vibration can loosens hardware quickly. Check anti-friction strips on rail channels.
Nylon or plastic pads keeps the carriage gliding smoothly. Worn out or dirty strip cause the slide to droop at ends and bind in middle. With dry cloth, wipe down the rails.
Cleaning Anti-Friction Strips
Scrape away accumulated sawdust. Swap out cracked strips. They’re cheap and simple to replace.
Keep the rails smooth to get even cut height all the way through. This is important for finish work where small cuts mess up joint alignment. Look at how well blade aligns with miter gauge slot.
When table is fully extended, blade should be dead on parallel with slot. I use a good combination square, but you can also use a dial indicator for this. If your cut isn’t right, it could be due to loose carriage bolts, dirty anti-friction strips, lack of lubrication, an unlevel floor, or blade misalignment.
Aligning Blade with Miter Gauge
You’ll get tapered cuts. To adjust this, loosen the bolts that holds the motor mount. Make tiny adjustments.
Tighten and go back to check. Don’t ruin more wood by rushing this part. Guesswork happens to most folks here.
Lubrication is very important for performance. The slide on DWS780 is driven by a gear system. Gears that is dry will grind and stick.
Lubricating the Gear Mechanism
Lubricate moving parts of the gear mechanism with light machine oil or white lithium grease. Don’t use WD-40. WD-40 is a solvent, not an oil.
It will strip what’s already there and leave things even dryer. With proper lubrication, slide will move with even resistance throughout its entire range of motion. Make sure table is level with the floor.

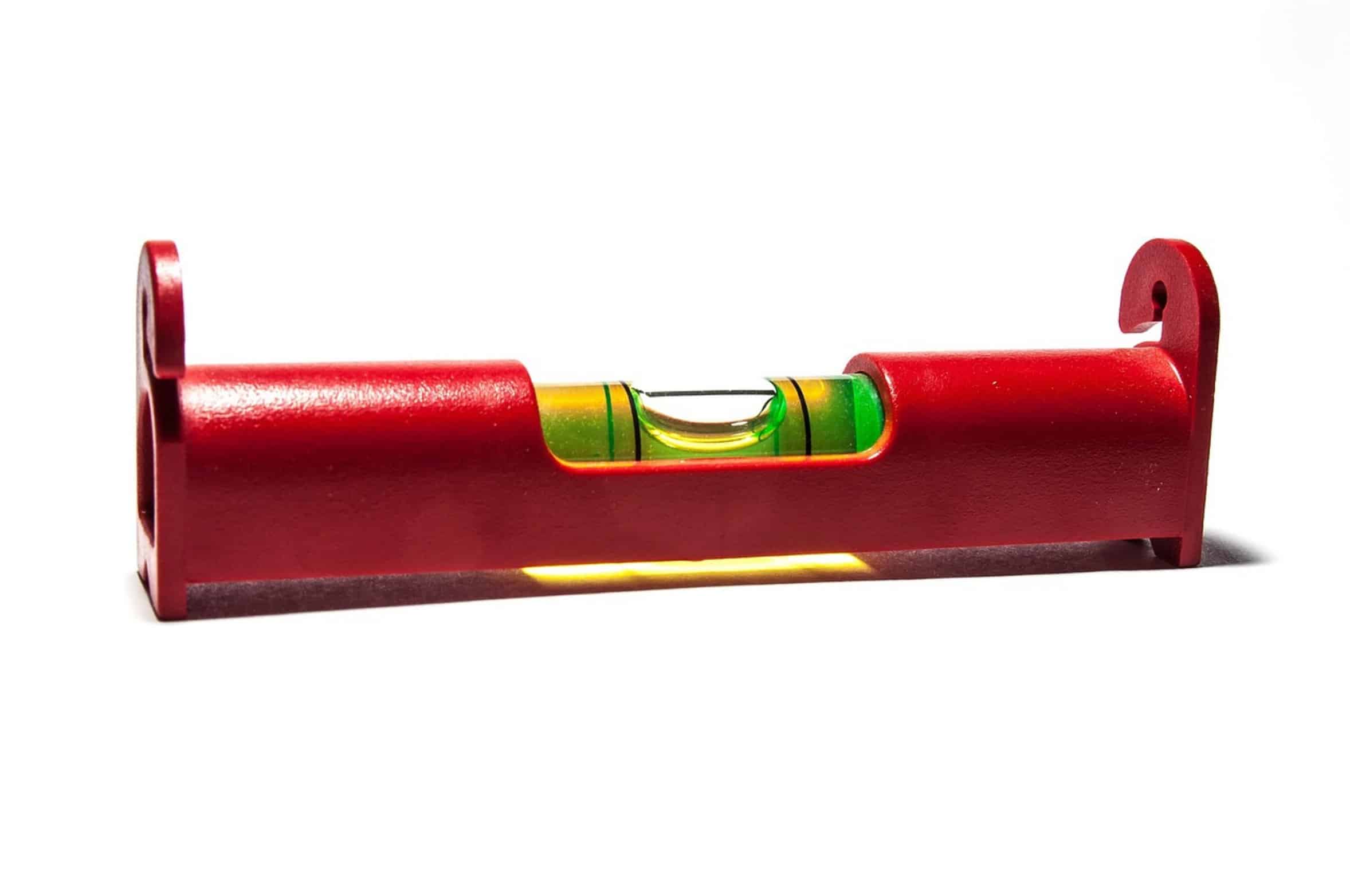

Side load on rails can distort and give unevven feel after you adjust alignment. Level your saw using adjustable feet. Run a spirit level from end to end along the table top.
Leveling the Saw Base
Bind in the slide can be caused by dirty or worn strips during maintenance or by having an unlevel base. The precision engineering within need a solid foundation. The slide problem on DWS780 is a mechanical problem.
It’s not a problem that needs a mechanical genius. It’s a problem that need someone willing to take their time to get it right. Whoever tightens all those bolts should of checked every connection.
That person will have better cuts. That person will be safer. And that saw will live up to its potential.
When you tighten things, the wobble goes away. If you guess at things, the wobble never does.
